SMD Component Tape Strip Hold Tray

3D-Printed SMD Component Tape Tray for Pick & Place Machines

Streamline your surface-mount assembly with this 3D-printed SMD component tape holder. Specially designed for vision-assisted Pick and Place (PnP) systems like the LitePlacer, this tray exposes sprocket holes cleanly for fast computer-vision recognition while keeping component strips secure.

Key Features

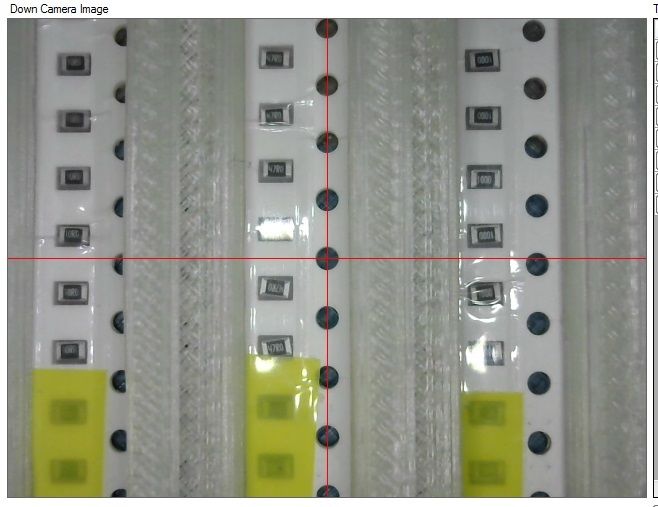

• Vision-System Compatible: Open channel architecture allows machine vision systems to easily detect indexing holes on component tapes.
• Vibration Dampening & Labeling: Features a dedicated label facet for quick component identification and integrated mounting holes to secure the tray to your PnP bed—preventing component bounce during high-speed picking.
• Precision Friction Fit: Holds SMD tapes securely in place while still allowing smooth manual adjustments with light force.
• Ordering Customization: Available in multiple colors. Please specify your preferred color when ordering (default is black).

Tray Variant Specifications

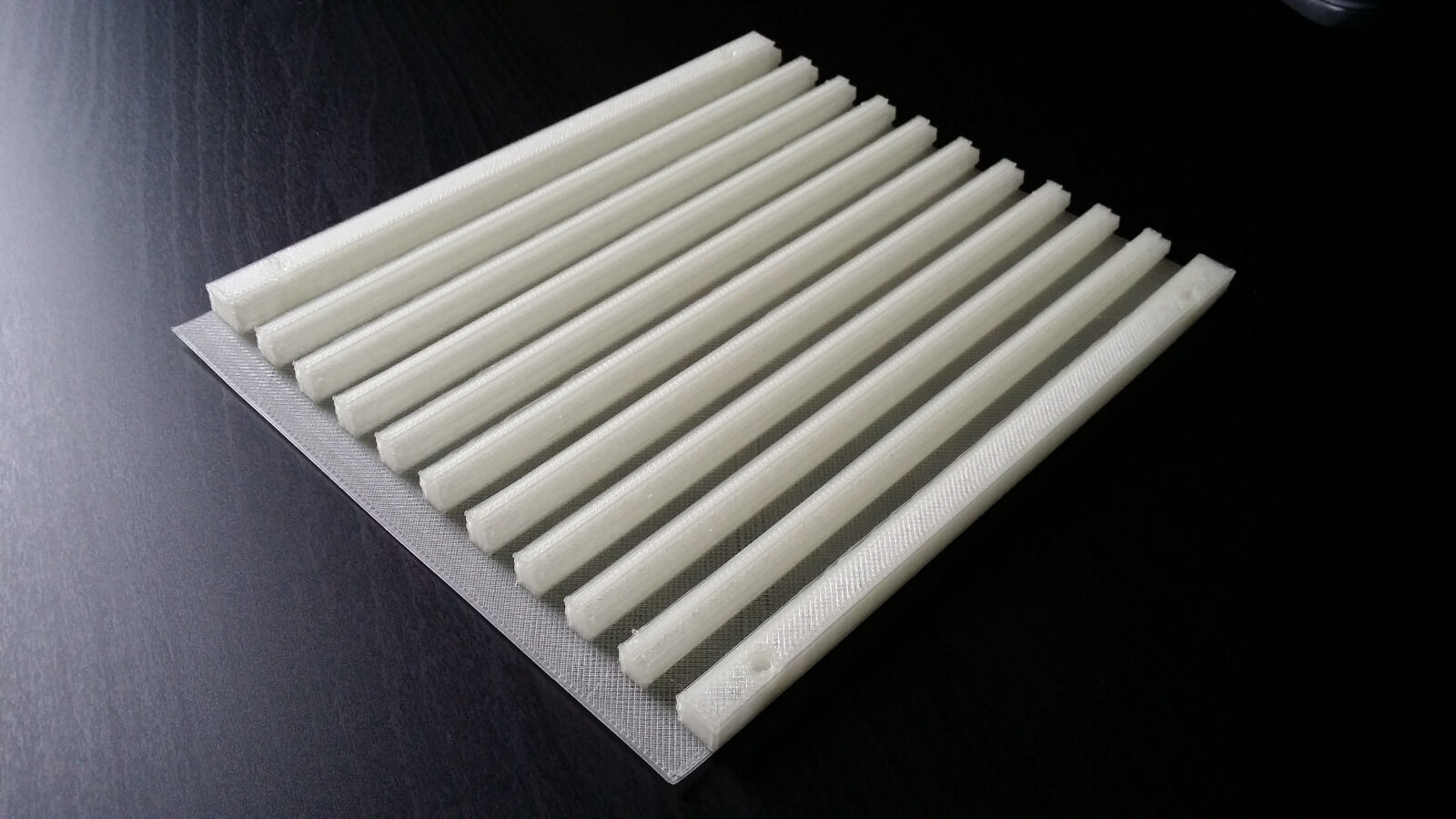

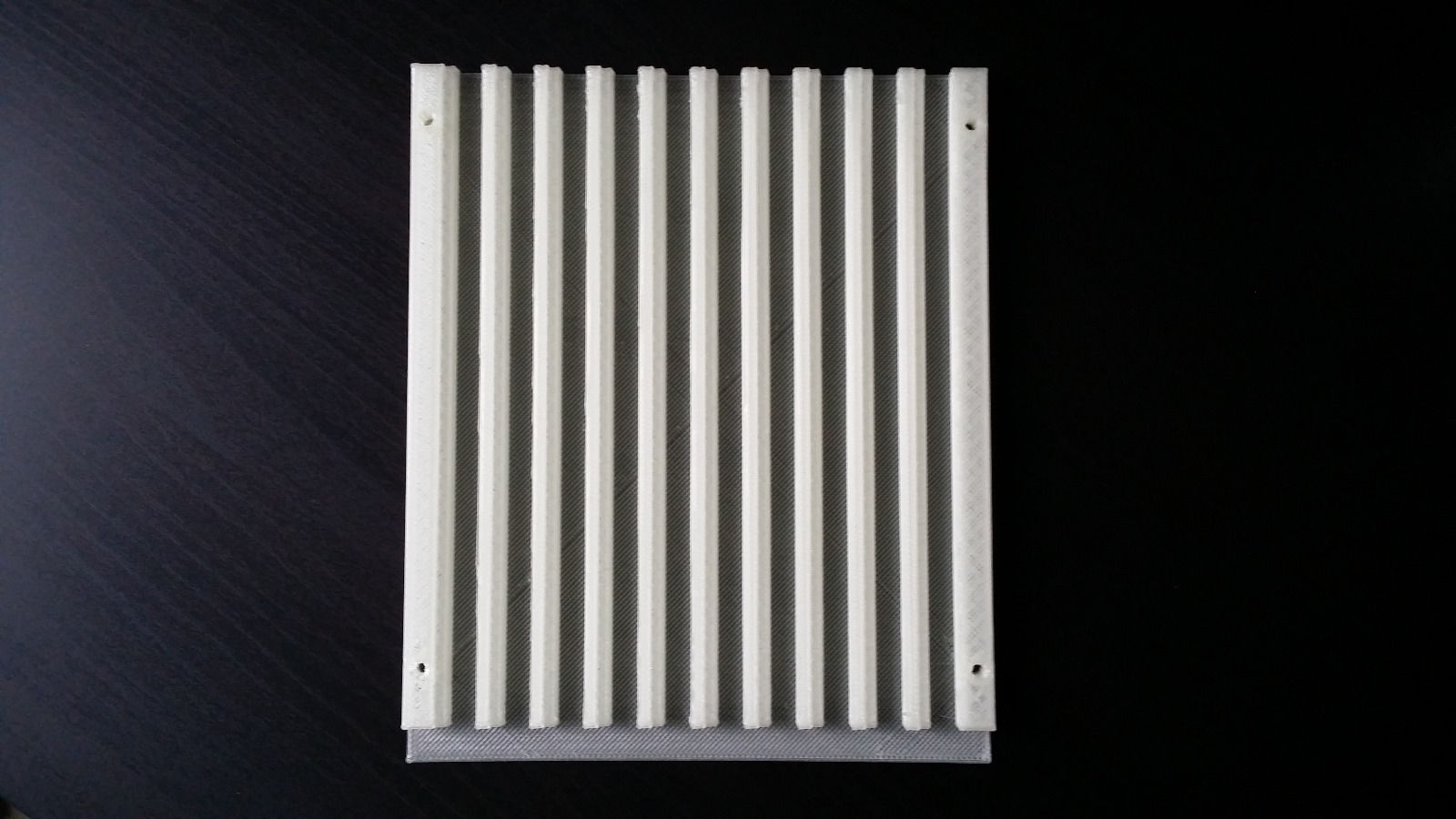

1. 8mm Tape Tray

• Capacity: 10x 8mm tapes
• Component Channel Length: 175 mm
• Max Dimensions: $185 \times 119 \times 4.2\text{ mm}$
• Mounting Hole Spacing: $145 \times 111\text{ mm}$
• Max Tape Depth: 2.0 mm

2. 8mm / 12mm Dual Tray

• Capacity: 10x 8mm or 12mm tapes (8mm inserted at bottom; 12mm inserted at top)
• Component Channel Length: 175 mm
• Max Dimensions: $185 \times 154 \times 8.2\text{ mm}$
• Mounting Hole Spacing: $145 \times 146\text{ mm}$
• Max Tape Depth: 1.4 mm (8mm tape) | 6.0 mm (12mm tape)

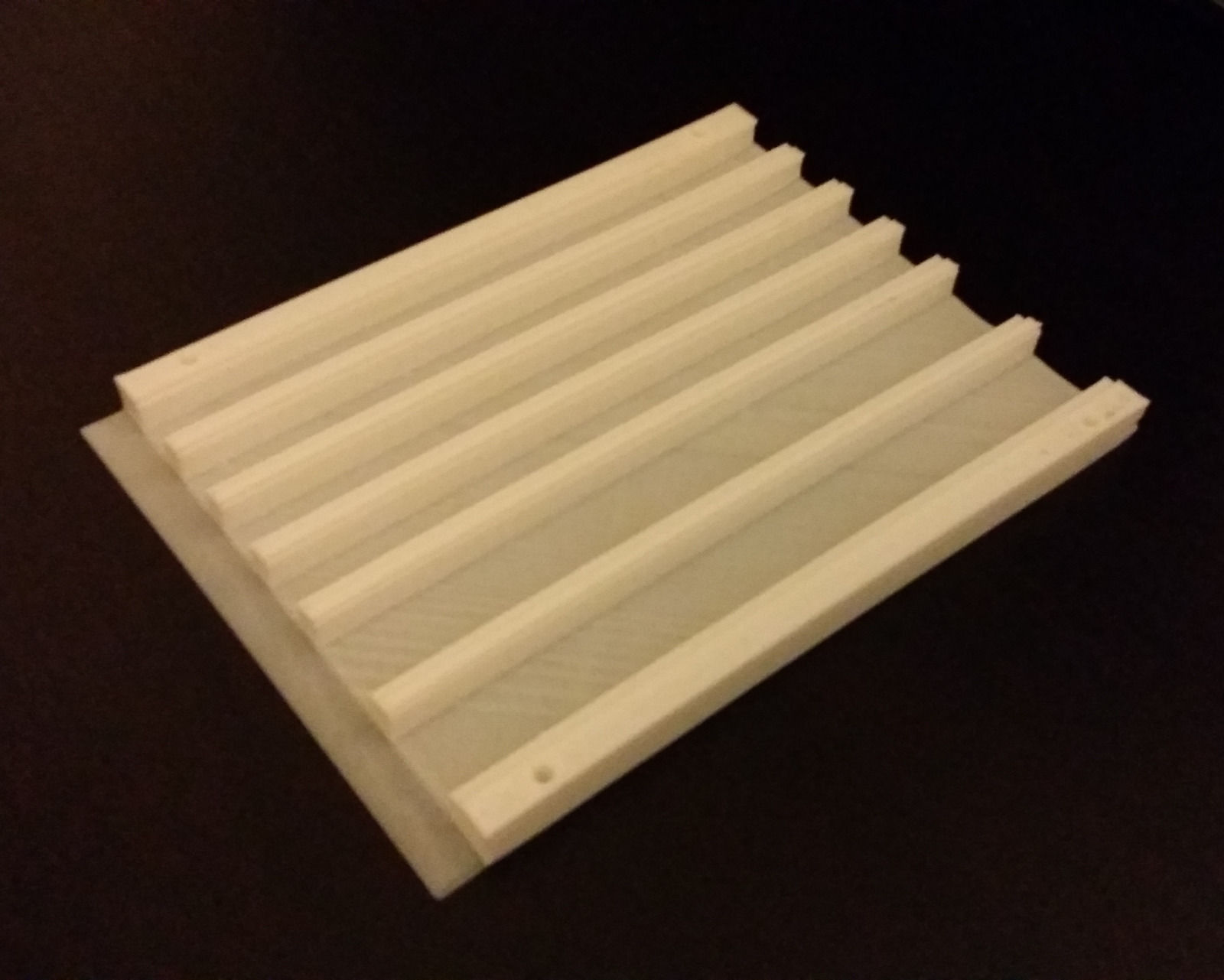

3. 16mm / 24mm Combo Tray

• Capacity: 4x 16mm + 2x 24mm tapes
• Component Channel Length: 175 mm
• Max Dimensions: $185 \times 138 \times 10.2\text{ mm}$
• Mounting Hole Spacing: $145 \times 130\text{ mm}$
• Max Tape Depth: 8.0 mm

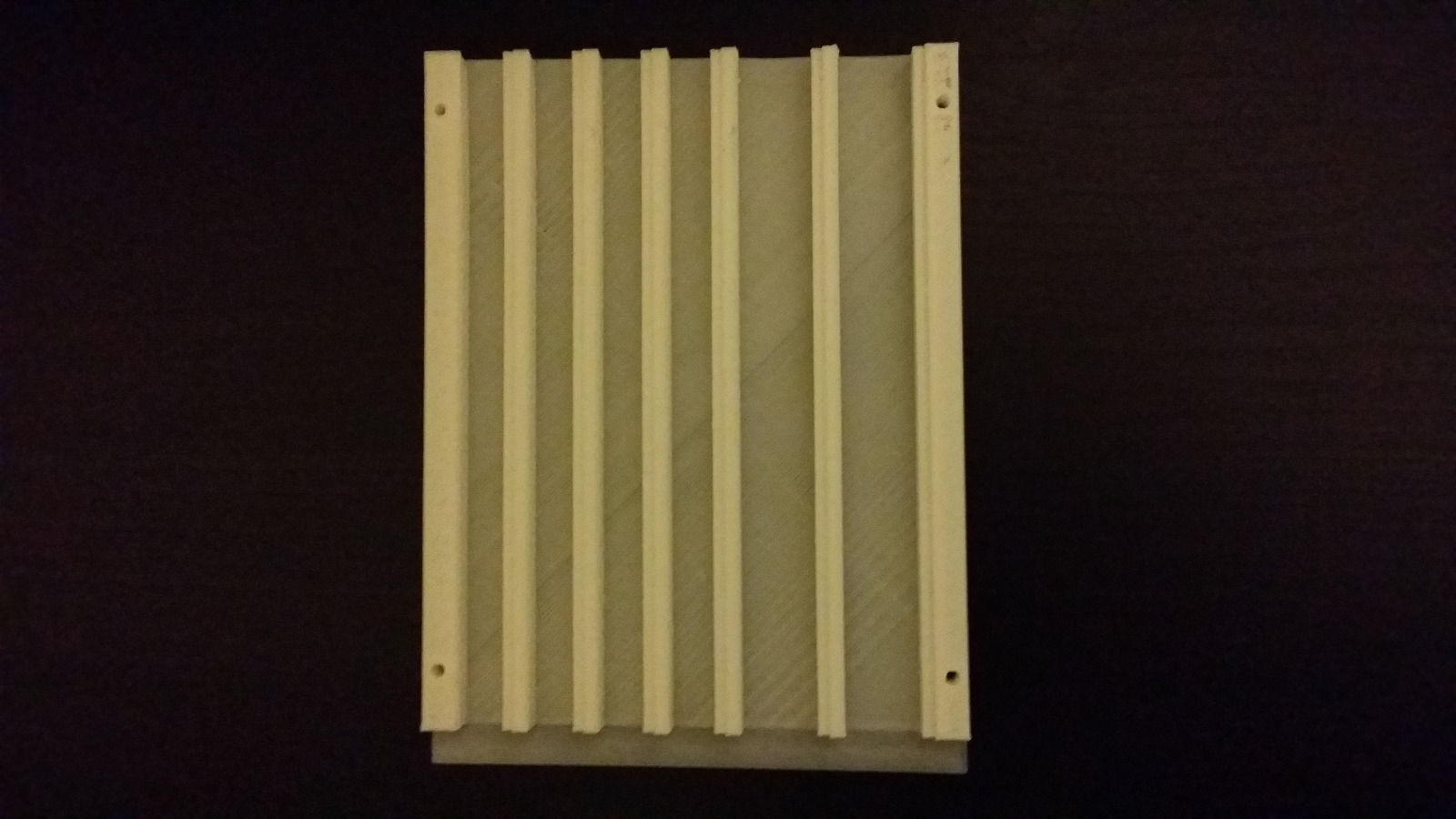

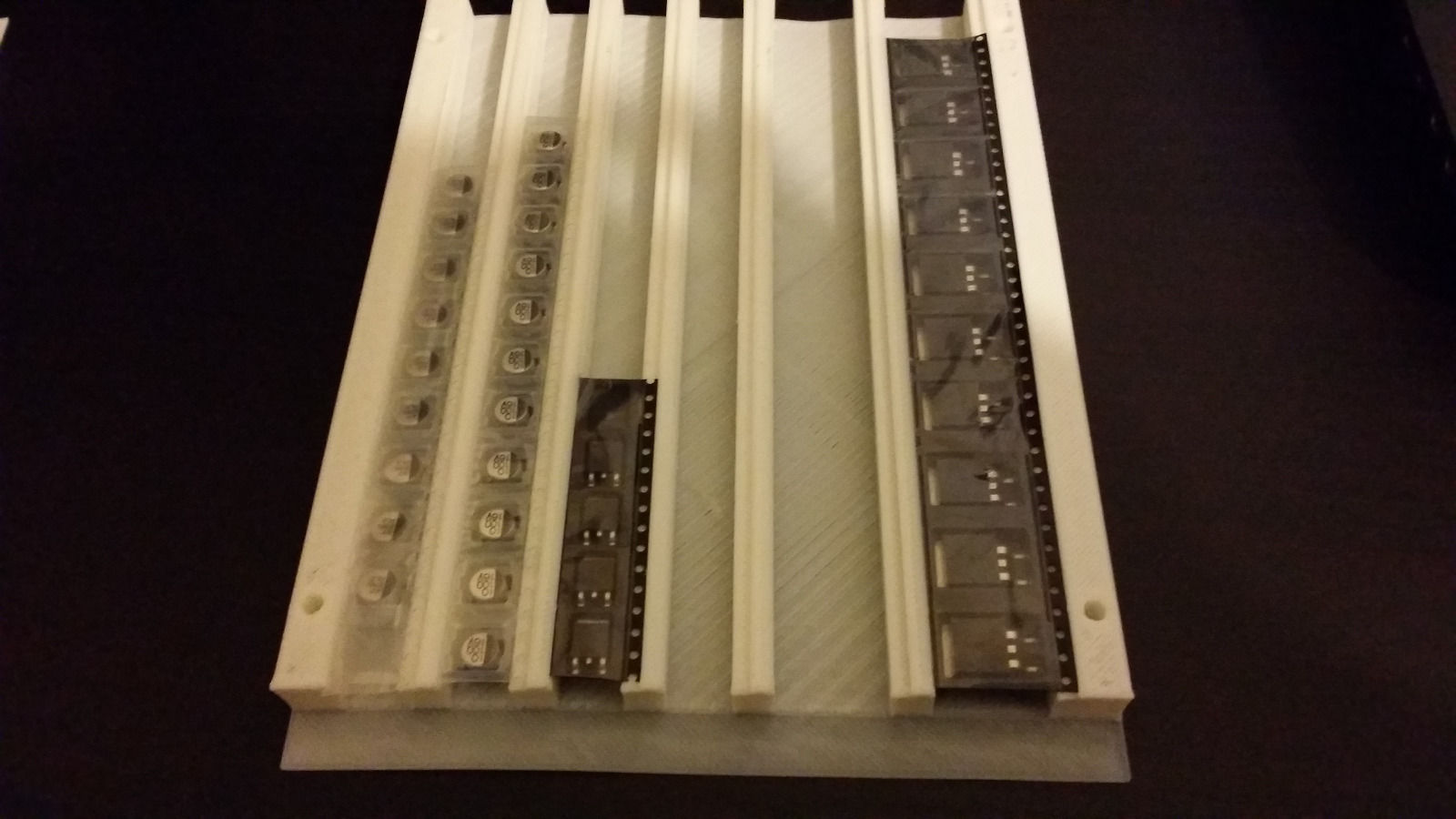

4. 24mm / 32mm / 44mm Wide-Format Tray

• Capacity: 1x 24mm + 2x 32mm + 1x 44mm tapes
• Component Channel Length: 175 mm
• Max Dimensions: $185 \times 156 \times 12.1\text{ mm}$
• Mounting Hole Spacing: $145 \times 148\text{ mm}$
• Max Tape Depth: 10.0 mm

Usage & Setup Notes

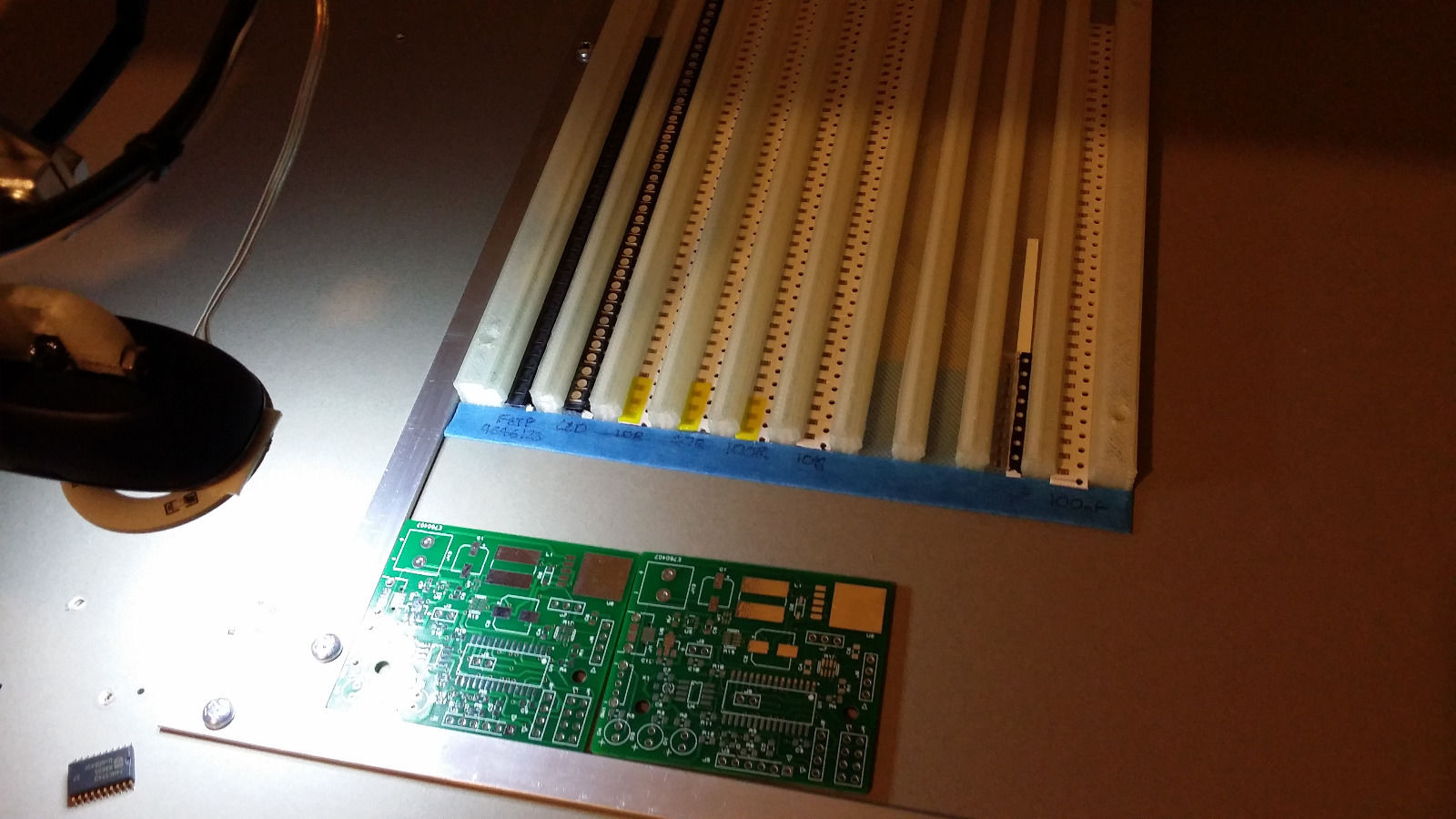

• Best Results: Screw the tray firmly to your machine table before peeling back protective plastic covers from your SMD component strips to prevent parts from popping out.
• Manufacturing Detail: Due to the 3D-printing process, minor surface burrs may be present. These can easily be trimmed using a hobby knife or sharp blade.
